Choosing the Right Concrete Pad for Your Calgary Garage: A Comprehensive Guide

A garage is a significant investment, serving as more than just a parking space. It can be a workshop, a storage area, or an extension of your home. The concrete pad is the literal foundation of this investment, and its design and construction are critical to the garage’s longevity and stability. In Calgary, this process is profoundly influenced by the region’s unique climate, characterized by harsh winters, significant temperature swings, and diverse soil conditions. These factors present specific challenges that require specialized knowledge to ensure a durable and resilient structure.

Understanding Calgary’s Climate and Soil: The Foundation of Durability

A successful garage pad in Calgary must be engineered to withstand the local environmental pressures.

• Impact of Freeze-Thaw Cycles and Frost Heave: Calgary’s winters feature repeated freeze-thaw cycles. When water in the soil freezes, it expands and exerts upward pressure on the concrete pad—a process called frost heave. When it thaws, the ground settles, often unevenly. This cycle creates immense stress on the concrete, leading to cracks and structural damage. Consequently, frost protection is a primary concern for any foundation in Calgary.
• Importance of Soil Analysis and Proper Drainage: Calgary’s soil varies from expansive clay to stable gravel. A soil analysis is essential to determine the ground’s load-bearing capacity and design the appropriate foundation. Effective water management is equally vital. Significant rainfall can lead to water pooling, which erodes the sub-base and undermines the foundation. Robust drainage solutions, such as gravel layers and drainage pipes, are necessary to divert water away from the pad.
• Snow Load and Climate Resilience: While heavy snowfall primarily affects the roof, its weight adds to the total load the foundation must bear. The National Building Code: 2023 Alberta Edition includes detailed provisions for snow loads. A resilient garage pad must be designed for Calgary’s full spectrum of climate challenges, including intense rainfall and extreme heat. Modern building codes are evolving to include factors for climate change, meaning a garage built today must be prepared for future environmental conditions.

Types of Concrete Foundations for Calgary Garages

Choosing the right foundation type is a critical decision based on site conditions, garage size, and budget.

• Slab-on-Grade Foundation: This common and often cost-effective option involves pouring a concrete slab directly onto a prepared sub-base. For Calgary, a slab-on-grade foundation must be carefully engineered to prevent frost heave, often by incorporating insulation or excavating deeper to place the footing below the frost line.
• Frost-Protected Shallow Foundation (FPSF): Specifically designed for cold climates, an FPSF uses rigid foam insulation around the perimeter of the slab. This insulation traps geothermal heat, keeping the soil beneath the slab from freezing and heaving. The FPSF is an ideal and intelligent choice for most garage builds in Calgary, offering superior long-term value and protection against frost damage.
• Piled or Pier Foundation: On sites with poor soil quality, a high water table, or steep slopes, a piled foundation is necessary. This method involves driving steel or concrete piles deep into the ground to reach stable, load-bearing soil. The garage is then built on these piles. This is a more complex and expensive option but is essential for ensuring stability on challenging sites.
• Monolithic vs. Floating Slabs:
  • A floating slab has a footing poured separately from the main floor slab. The walls are built on the footing, and the floor is poured inside. This design means that if the footing settles, there is less direct pressure on the floor slab. They are cost-effective but can be vulnerable to erosion if soil shifts underneath.
  • A monolithic slab combines the footing and floor into a single, continuous pour. This can be faster and more efficient but also means that any settling or movement affects the entire structure, potentially leading to more complex and expensive repairs.

The choice between these options has long-term financial implications. The integrated nature of a monolithic slab carries a higher risk profile if the ground shifts. The decision to include insulation is also tied to whether the garage will be heated, as a heated space helps keep the ground below from freezing, making insulation even more effective.

Foundation Type Comparison

Foundation Type	Description/Key Characteristics	Ideal Use Case	Calgary-Specific Considerations	Pros	Cons/Vulnerabilities	Repair Complexity
Slab-on-Grade	Concrete slab poured directly onto prepared ground.	Smaller, single-car garages	Requires engineering for frost heave; may need insulation or deeper excavation.	Cost-effective for small builds.	Vulnerable to frost heave without proper engineering.	Moderate
Frost-Protected Shallow Foundation (FPSF)	Uses perimeter insulation to maintain stable soil temperatures under slab.	Moderate to large garage builds in cold climates.	Ideal for Calgary’s cold winters; insulation prevents frost heave.	Excellent frost protection; smart choice for the region.	Potentially higher initial cost than basic slab-on-grade.	Low to Moderate
Piled or Pier Foundation	Steel or concrete piles driven deep into stable soil to support structure.	Areas with poor soil quality, high water tables, or sloped land.	Necessary for challenging soil conditions; requires detailed engineering.	Superior stability in adverse conditions.	More complex and expensive; requires specialized engineering.	High
Floating Slab	Single layer of concrete on leveled soil; exterior walls on footer, slab poured afterward.	Garages, sheds, small additions.	Vulnerable to erosion; footer settling applies less pressure to slab.	Cost-effective; slab somewhat isolated from footer movement.	Vulnerable to erosion and voids; relies on soil support.	Moderate (Slabjacking)
Monolithic Slab	Concrete footing and floor poured simultaneously as one continuous piece.	Builds where quick, efficient pouring is prioritized.	Erosion affects entire structure; settling impacts both floor and footers.	Quicker pour; cost-effective for specific builds.	Highly vulnerable to erosion; settling affects entire foundation.	High (Requires piers & leveling)

Essential Concrete Specifications for Calgary’s Climate

The quality of the concrete mix itself is paramount for durability.

• Concrete Strength and Air Entrainment: For garages in Calgary, the standard is a minimum compressive strength of 32 MPa (megapascals) at 28 days. This is designed for a C2 exposure class (concrete exposed to freeze-thaw cycles). Air entrainment is also vital. This process introduces microscopic air bubbles (typically 5-8% air content) into the mix. These bubbles act as relief valves for pressure from freezing water, dramatically improving the concrete’s resistance to freeze-thaw damage.
• Water-to-Cement Ratio: A low water-to-cement (w/c) ratio, with a maximum of 0.45, is essential for producing dense, strong concrete that is less permeable to water and thus more resistant to damage.
• Reinforcement: Rebar vs. Fiber Mesh: Concrete needs reinforcement to handle stress.
  • Rebar (Reinforcing Bar): Steel bars placed in a grid pattern provide critical tensile strength and load distribution. Rebar is essential for handling heavy vehicle loads and preventing large, structural cracks. For maximum effectiveness, it must be positioned correctly—approximately two-thirds of the way up from the bottom of the slab.
  • Fiber Mesh: Synthetic or metallic fibers added to the mix help control smaller, non-structural shrinkage cracks that form during curing. For optimal performance, a combination of rebar and fiber mesh is often the most robust solution for a garage pad, addressing both structural loads and surface cracking. The quality of installation is as critical as the materials themselves; improperly placed reinforcement is ineffective.
• Concrete Admixtures: Chemical additives can enhance concrete properties. For example, WeatherMix® is designed for cold weather placement, allowing for high-quality pours in temperatures as low as -7.2°C.

The Concrete Pad Construction Process

Meticulous preparation and execution are key to a long-lasting garage pad.

1. Site Preparation: The process begins with clearing all vegetation and topsoil. The area is leveled to a uniform subgrade. In Calgary, excavation must extend below the frost line (4 to 6 feet deep) to prevent frost heave.
2. Sub-base: A granular sub-base of compacted crushed stone (minimum 6 inches thick) is laid to provide a stable, well-drained foundation for the slab.
3. Vapor Barrier and Slope: If the garage will be heated, a vapor barrier is placed over the sub-base to block moisture from rising through the concrete. A slight slope (2-3 inches from back to front) is incorporated to ensure proper water drainage.
4. Formwork and Reinforcement: Forms are installed to shape the pad, and the rebar or mesh reinforcement is carefully placed at the correct height within the forms.

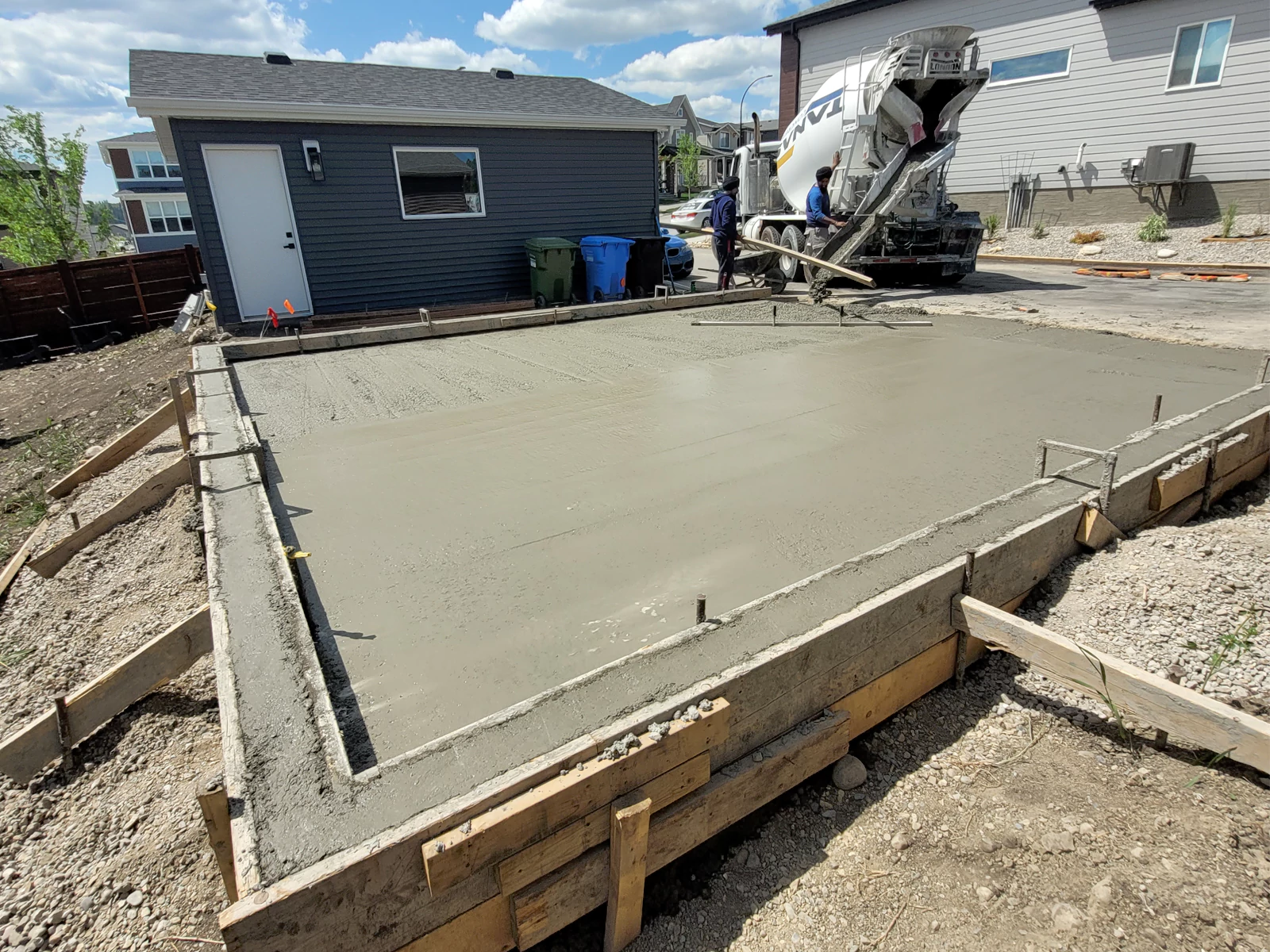

5. Pouring and Curing: Pouring concrete in Calgary’s climate requires specific techniques. The concrete must be kept at a temperature of 10°C or warmer for at least three to seven days to cure properly. If cold temperatures are expected, the slab must be protected with insulating blankets. It’s recommended to wait at least seven days (ideally 28) before driving on the new pad.

Finishing Your Garage Pad: Functionality and Aesthetics

The right finish protects the concrete and enhances the garage’s usability.

• Functional Finishes: A broom finish creates a textured, slip-resistant surface, which is ideal for safety in wet or icy conditions. A troweled finish is smoother, easier to clean, and serves as a good base for coatings.
• Protective Coatings: Epoxy vs. Polyaspartic:
  • Epoxy coatings are durable, impact-resistant, and cost-effective upfront. However, they take longer to cure (2-3 days) and can yellow over time with UV exposure.
  • Polyaspartic coatings are a newer technology known for rapid curing times (walkable in 24 hours). They are highly UV-resistant (no yellowing), more flexible (less prone to cracking), and can be applied in a wider range of temperatures, making them exceptionally well-suited for Calgary. While the initial cost is higher, their longer lifespan (15-20+ years) often provides superior long-term value.

Epoxy vs. Polyaspartic Coating Comparison

Feature	Epoxy Characteristics	Polyaspartic Characteristics
Drying Time	Longer (2-3 days or more to cure)	Much faster (hours to cure, walkable in 24 hours)
Application Temp.	Typically needs temperatures above 10°C	Wider range, can be installed in sub-zero temperatures
UV Resistance	Can yellow over time when exposed to sunlight	Excels in resisting UV light, no yellowing or fading
Flexibility	Rigid, prone to chipping and cracking	More flexible, which reduces cracking
Lifespan	5-10 years depending on use	15-20 years or more
Initial Cost	Generally less expensive upfront	Higher initial cost
Suitability for Calgary	Good, but long cure time and UV yellowing are drawbacks.	Excellent, ideal for cold weather application and long-term durability.

• Aesthetic Options: Concrete can be enhanced with dyes, acid stains, polishing, or stamping to replicate materials like brick or stone, adding significant visual appeal and value.

Navigating Calgary’s Building Codes and Permit Requirements

Building a garage in Calgary is a regulated process.

• When Permits Are Required: A building permit is required for most detached garages exceeding 10 m² (107 sq. ft.). A development permit may also be needed if the garage exceeds standard height or size limits or deviates from land-use bylaws. Separate electrical, plumbing, and gas permits are required for utility installations.
• Application Documents: A complete permit application requires professional construction plans, including a floorplan, elevations, cross-sections, and an aerial site plan showing property lines and setbacks.
• Compliance: All construction must comply with the Alberta Building Code, which sets minimum standards for safety and structural integrity. Compliance is verified through city inspections.

Cost Considerations for Your Garage Concrete Pad

The total cost depends on several factors:

• Key Cost Factors:
  • Thickness: A standard slab is 4 inches, but 6 inches is recommended for heavier vehicles, increasing costs.
  • Reinforcement: Rebar is more expensive than mesh but provides superior structural support.
  • Finish: Decorative finishes and high-performance coatings add to the per-square-foot cost.
  • Site Conditions: Difficult sites requiring extensive excavation or a concrete pump truck will increase labor and material expenses.
• Potential Additional Costs: The initial “per square foot” price can be misleading. A robust Calgary garage pad requires items that may be quoted as “extras.” These are not optional but essential for long-term performance:
  • Rebar: ~$1.60 per sq. ft.
  • Vapor Barrier: ~$0.50 per sq. ft.
  • Under-slab Insulation: ~$0.50 per sq. ft.
  • Thickened Edges: ~$1-$2 per linear ft. Scrutinize quotes to ensure these climate-specific necessities are included.

Long-Term Care and Maintenance

Proactive maintenance is key to maximizing your concrete pad’s lifespan.

• Protecting Against Freeze-Thaw Damage: Apply a high-quality penetrating sealer 28 days after the pour and reapply as needed. This prevents moisture from seeping into the concrete. Crucially, avoid using de-icing chemicals containing salt, calcium chloride, ammonium sulfate, or ammonium nitrate, as they will chemically degrade the concrete. Do not use any de-icers during the first year.
• Cleaning and Repairs: Sweep the floor regularly. For deep cleaning, use a stiff brush and a mild cleaner. Address oil spills and stains promptly. Repair small cracks as soon as you see them with an epoxy filler to prevent water intrusion and further damage.

Why Choose a Local Calgary Concrete Expert

Partnering with an experienced local contractor is a strategic investment.

• Local Expertise: Local contractors have an invaluable understanding of Calgary’s specific soil types, frost depths, and building codes. This ensures your garage pad is built to withstand local conditions, not just meet minimum requirements.
• Benefits of Professionals: Hiring a licensed, bonded, and insured contractor provides quality workmanship, professional permit management, warranties, and risk mitigation. This protects you from liability and ensures the project is completed on time and on budget.

Conclusion: Building a Lasting Investment

Choosing the right concrete pad in Calgary is a complex decision that requires a deep understanding of the local climate and soil, careful selection of materials and foundation type, meticulous construction, and a commitment to maintenance.

Calgary’s severe freeze-thaw cycles demand specialized practices like using frost-protected foundations and precisely formulated concrete with proper strength and air entrainment. A combination of rebar and fiber mesh offers the best reinforcement. High-quality finishes like polyaspartic coatings provide superior, long-lasting protection.

Given the technical specifications and complex permit process, the value of a local, licensed expert cannot be overstated. By prioritizing expert guidance and making informed decisions, homeowners can ensure their Calgary garage pad is a durable, lasting investment that stands strong for decades.

Frequently Asked Questions
